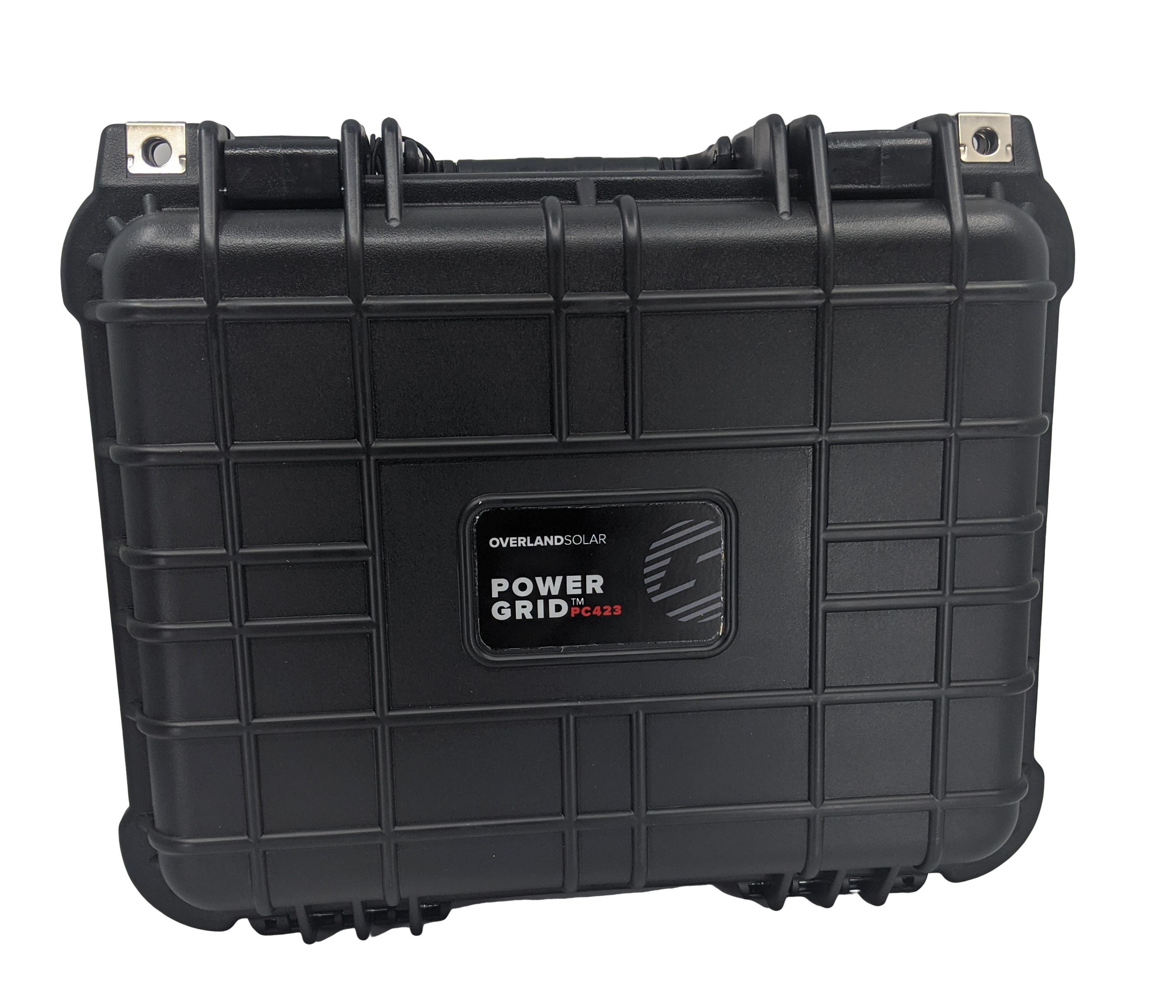

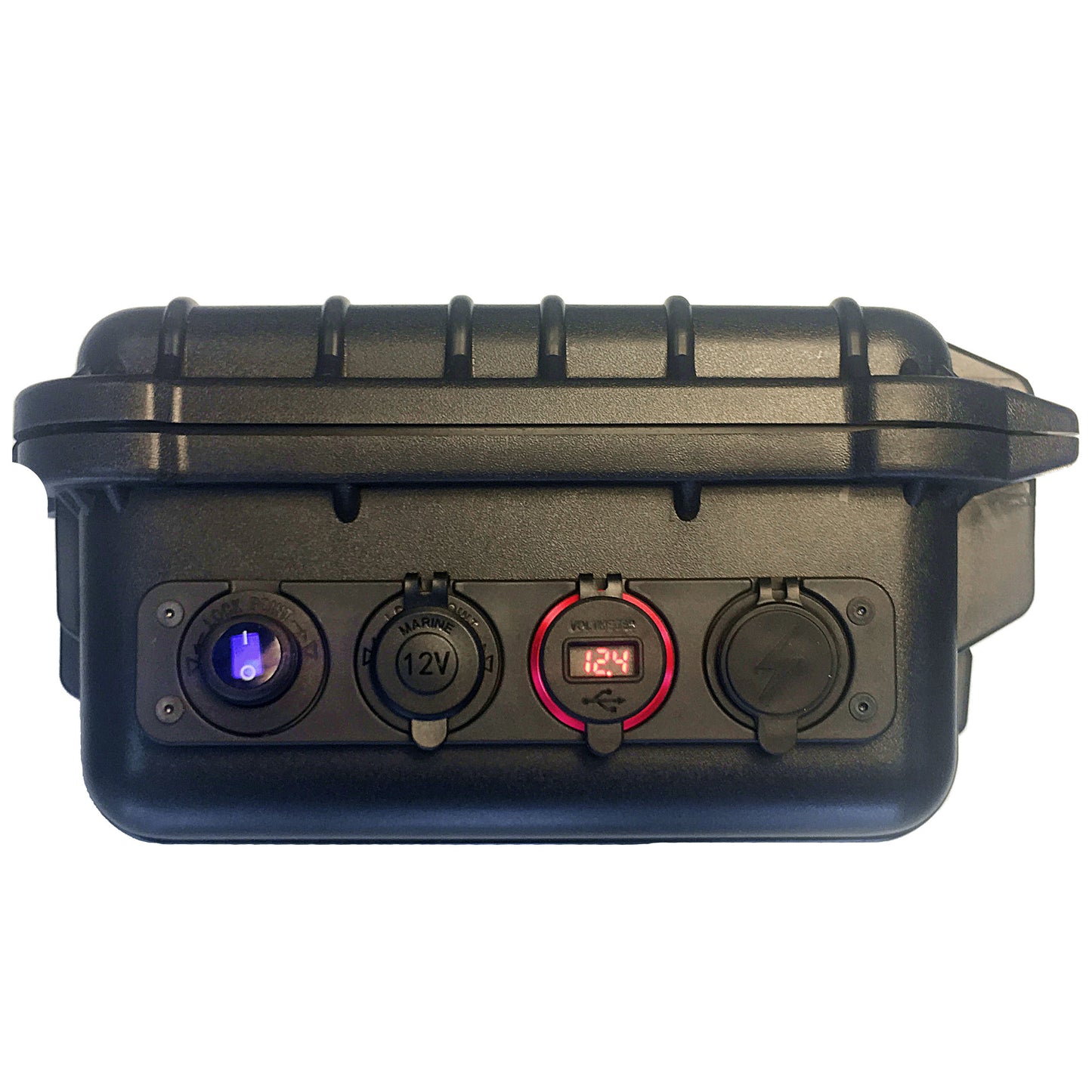

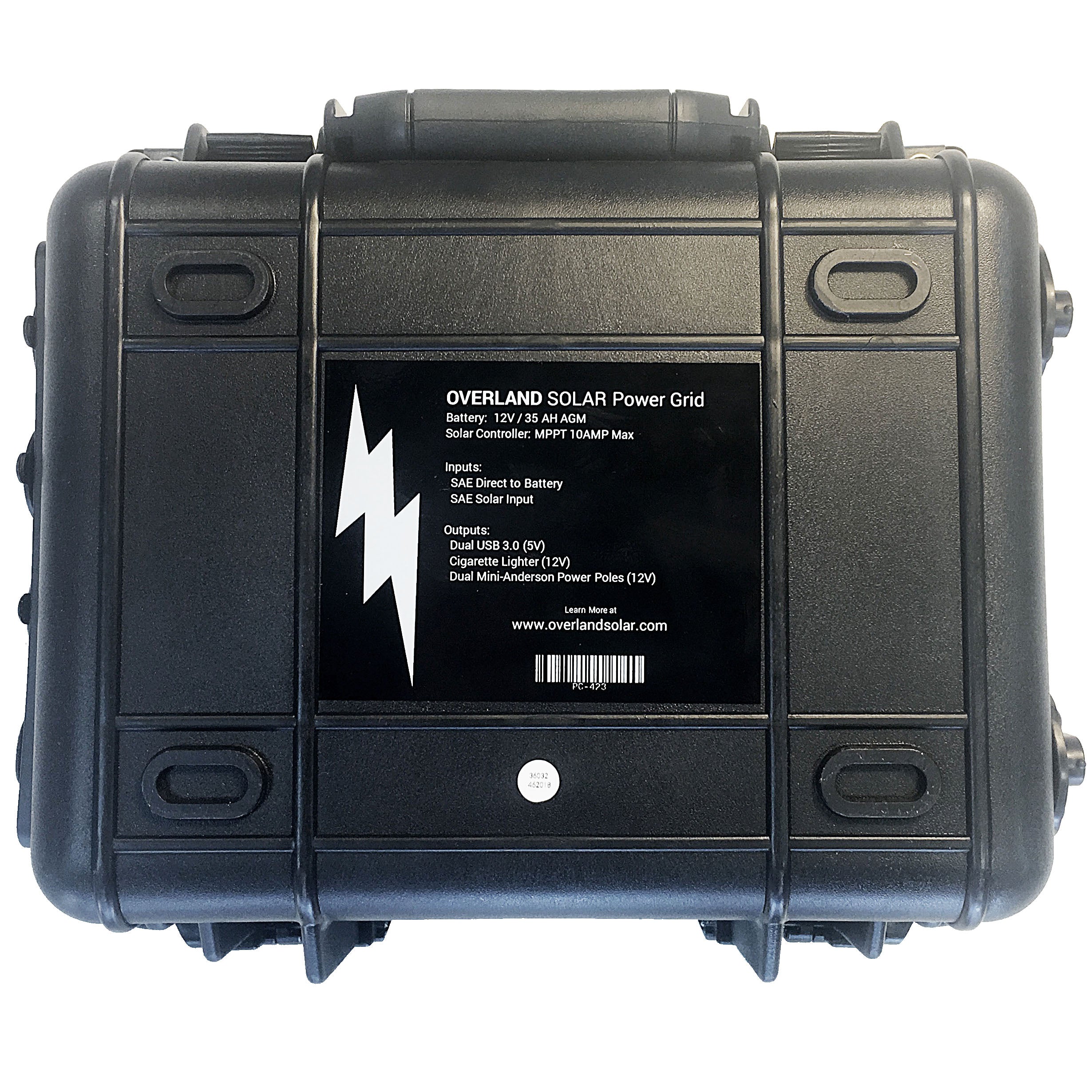

PowerGRID™ Portable Power System

The upgraded Overland Solar PowerGRID is a self contained 36amp hour LiFeP04 Deep Cycle Battery supply designed to work with any of our portable power systems.

The design addresses some key issues our customers have with other existing solutions, as well as our own.

Our requirements were:

• Rugged case and operable in any position.
• Field repairable. You can switch the battery out with normal tools or adjust the configuration with an allen wrench.
• Contain universal adapters for input and output including mini-anderson power poles for bare wire connections and HAM radio.
• Must be able to power a refrigerator using a single Bugout 120 Solar Kit indefinitely, in most conditions.
• Be cost-effective and upgradeable.
• As lightweight as possible

In short, this is an upgraded system you've seen us using to power our booth at shows. We are proud that all of our employees agreed that this is THE solution for Overlanding, HAM Radio contesting, family camping or boating, and scientific exploration.

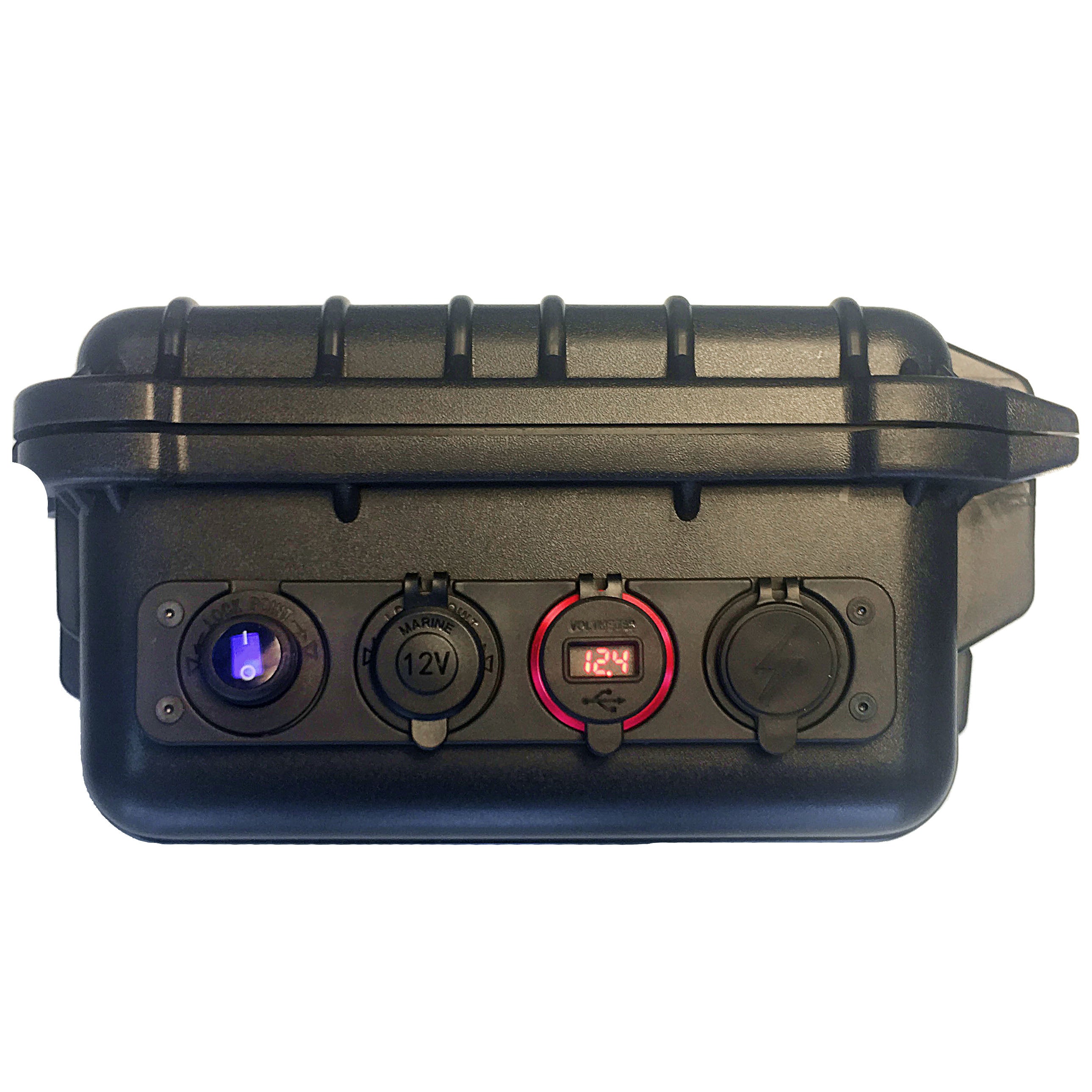

Features

• Solid State MPPT Solar Controller (10 Amp)
• 36 Amp Hour LiFeP04 Deep Cycle Battery
• 2X Dual QC3.0 USB Ports & Dual PD 3.0 Ports with on off switches
• Voltage Display
• 2x 12 Volt Outlet
• Any Outlet can be easily swapped out if your needs change

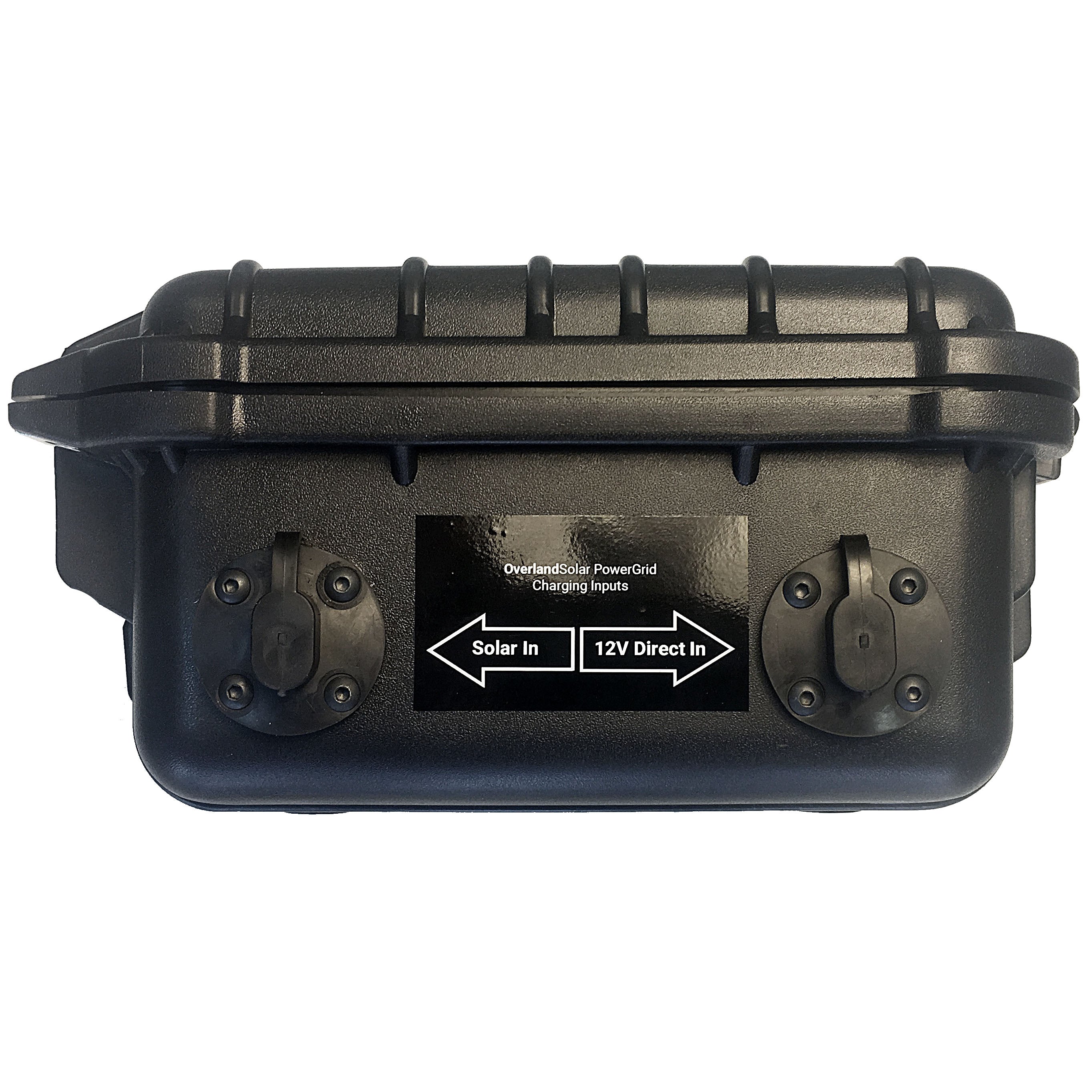

• 12 Volt Input with Car Adapter
• SAE Solar Input
